Product Details

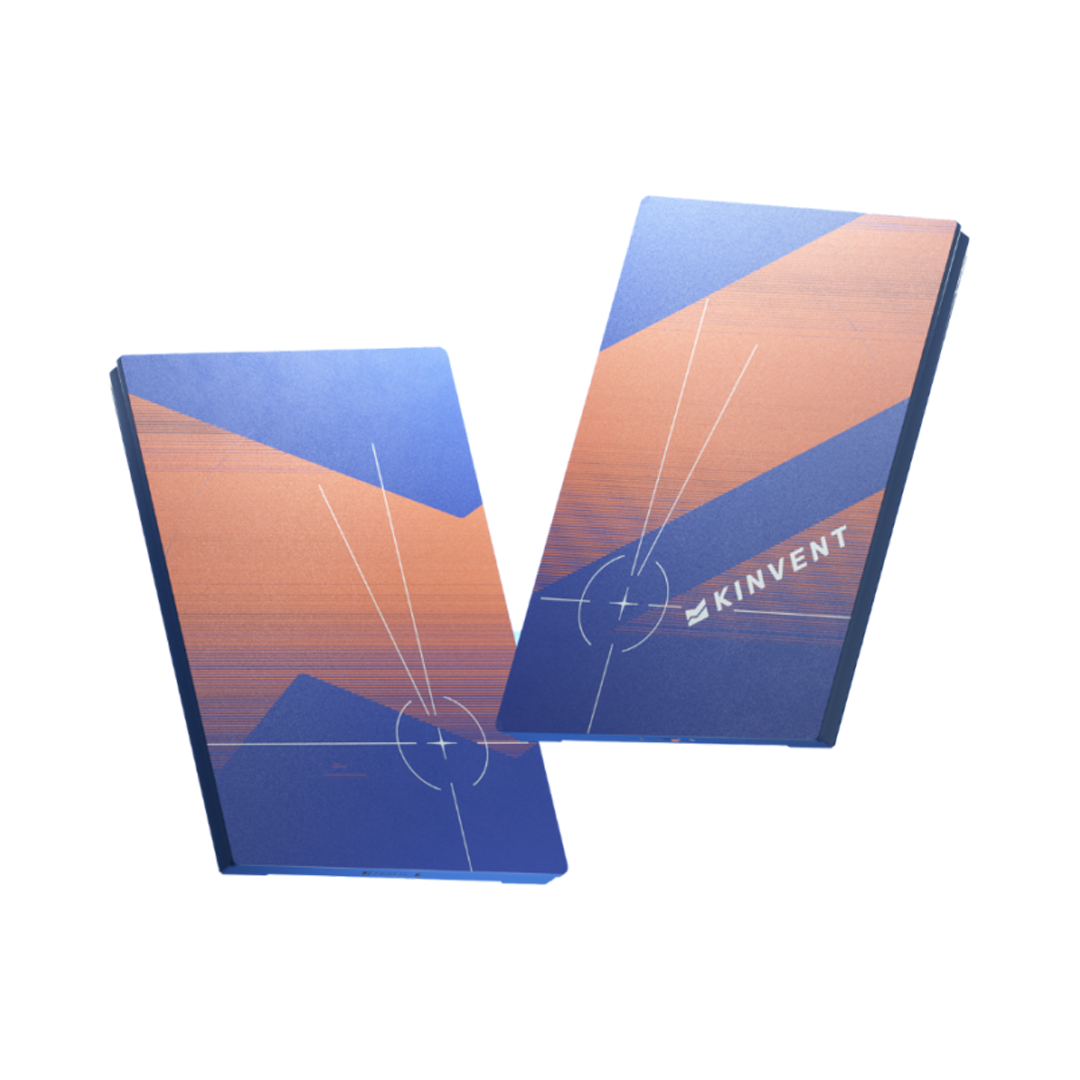

Elite Force Plates

K-Deltas XL force plates offer an expanded platform for comprehensive force measurement in advanced clinical, sports, and research settings.

With increased surface area and high-precision data capture, they’re ideal for full-body assessments, dual-limb testing, and high-performance analysis.

Why Choose K-Deltas XL?

• Extra large surface area: supports full-body movements, dual-limb testing, and complex dynamic tasks

• High-resolution data: delivers advanced force metrics for peak performance and clinical accuracy
• Built for elite use: ideal for sports teams, rehab centres, and biomechanics labs

• Integrated experience: syncs with the Kinvent App for real-time analysis and detailed reporting


Features

Jump Analysis

Counter Movement Jump and Squat Jump protocols (CMJ & SJ): assess jump height and get indicators during the impulse phase on thrust, power, explosive force, RFD (Rate of Force Development) and Left / Right distribution.

Drop Jump Protocol (DJ): get jump height following a landing, force development during ground contact and the RSI (Reactive Strength Index).

Static and Dynamic Balance

These force platforms are dedicated to advanced sportive performance analysis. Connected with Bluetooth to Kinvent Physio App, the K-Deltas help you manage the most efficient return to play process for your athletes.

Turnkey Protocols

Force / Velocity Spectrum Profile: measure the optimal load for Maximal Power, a cutting edge test in biomechanics strength and conditioning. Guide your training towards one of these two antagonist components.

Dynamic Strength Index (DSI): get the ratio between an athlete's ballistic peak force and their isometric peak force. This protocol includes isometric mid-thigh pull peak force (IMTP) and ballistic peak force during Counter Movement Jump (CMJ).

Unipodal CMJ / SJ: highlight Left / Right differences in Thrust, Force, Power, RDF, Jump Height.

Specifications

• Requirements:K-Deltas XL work with an Android 5.0 + and iOS 10.0 +, with Bluetooth low energy of 5.0.
• Weight: 12.8kg each platform.
• Acquisition Frequency: 400Hz
• Wireless Range: The wireless range can go up to 20 metres.
• Max Force: The maximum force each platform can withstand is 2400kg.
• Battery: The battery has 20H of autonomy and needs 2H of charging.
• Precision: Accuracy within 0.1% of reading.
• Dimensions: 49mm (H) x 810mm (W) x 470mm (L)
